AF-LMF Standing Pilot Valve System Manual On/Off Gas Valve Kit

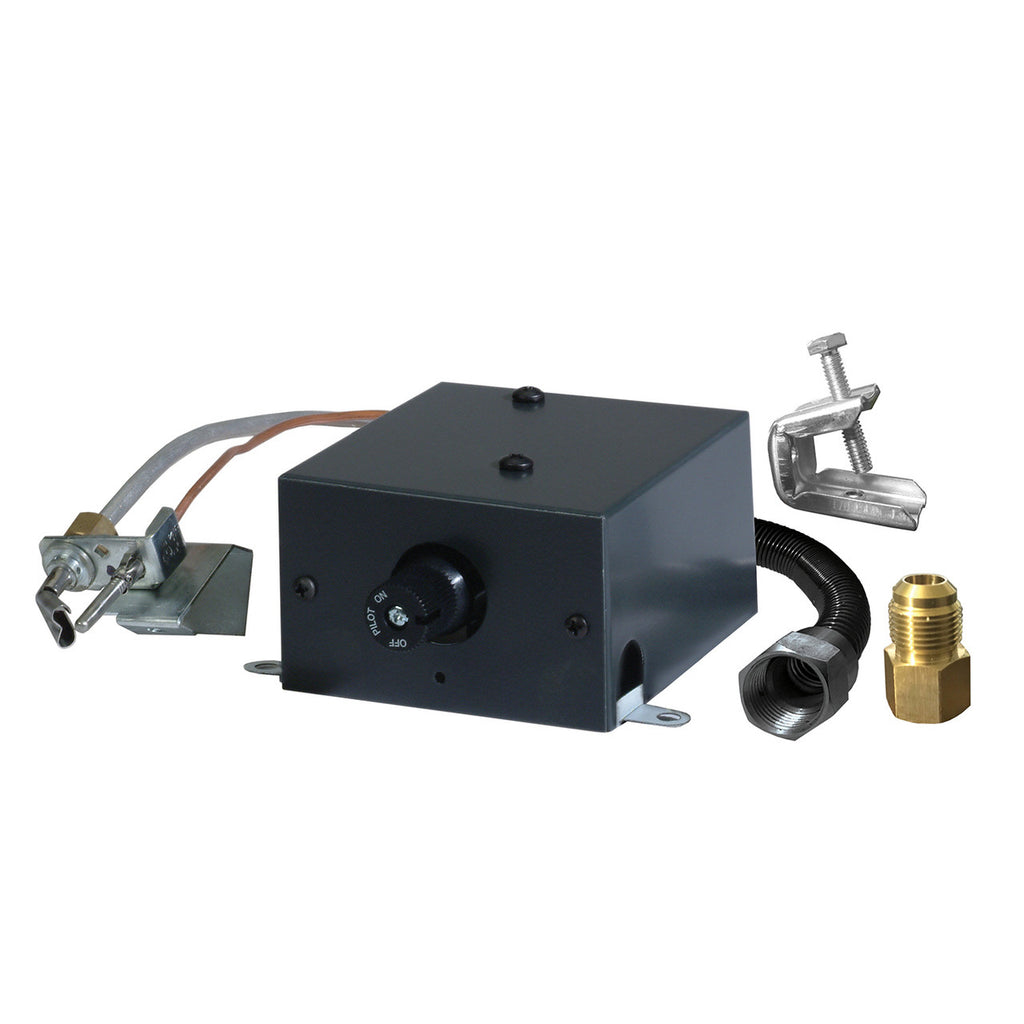

American Flame AF-LMF Standing Pilot Valve System Manual On/Off Gas Valve Kit

This control system was developed to provide safe, reliable, user-friendly operation for gas heating appliances. This unit features a standing pilot that requires manual lighting, following which it can be manually switched to the ON position for fireplace operation.

MANUAL OPERATION: This valve kit requires the pilot to be lit manually. Once lit it can be left standing.
SAFETY FUNCTION: This unit will close the gas flow if the oxygen level in the room is determined to be too low. Never operate this unit with the glass fireplace enclosure (doors) in the closed position. Install the Damper Clamp (included) to allow air flow.
PLACEMENT: Valve box must be located a minimum of 2-inches from the side of the basket grate and never placed directly in front or behind the basket grate.
COMPATIBILITY: This valve kit is designed to be used with 18 to 30-inch natural gas log sets (purchased separately). Optional LP conversion kits with pilot orifices are available separately.

$225.00 $317.00

SKU: 510-30400

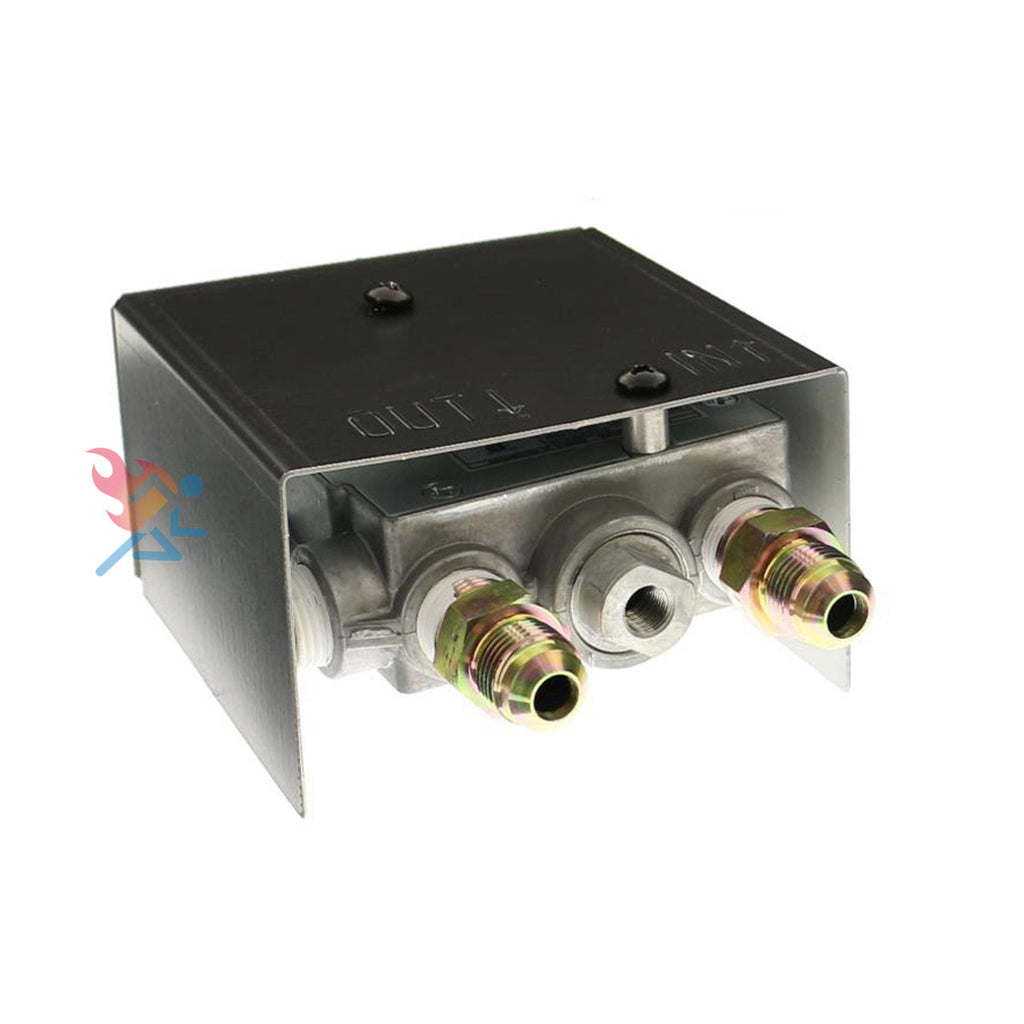

Manual valve assembly

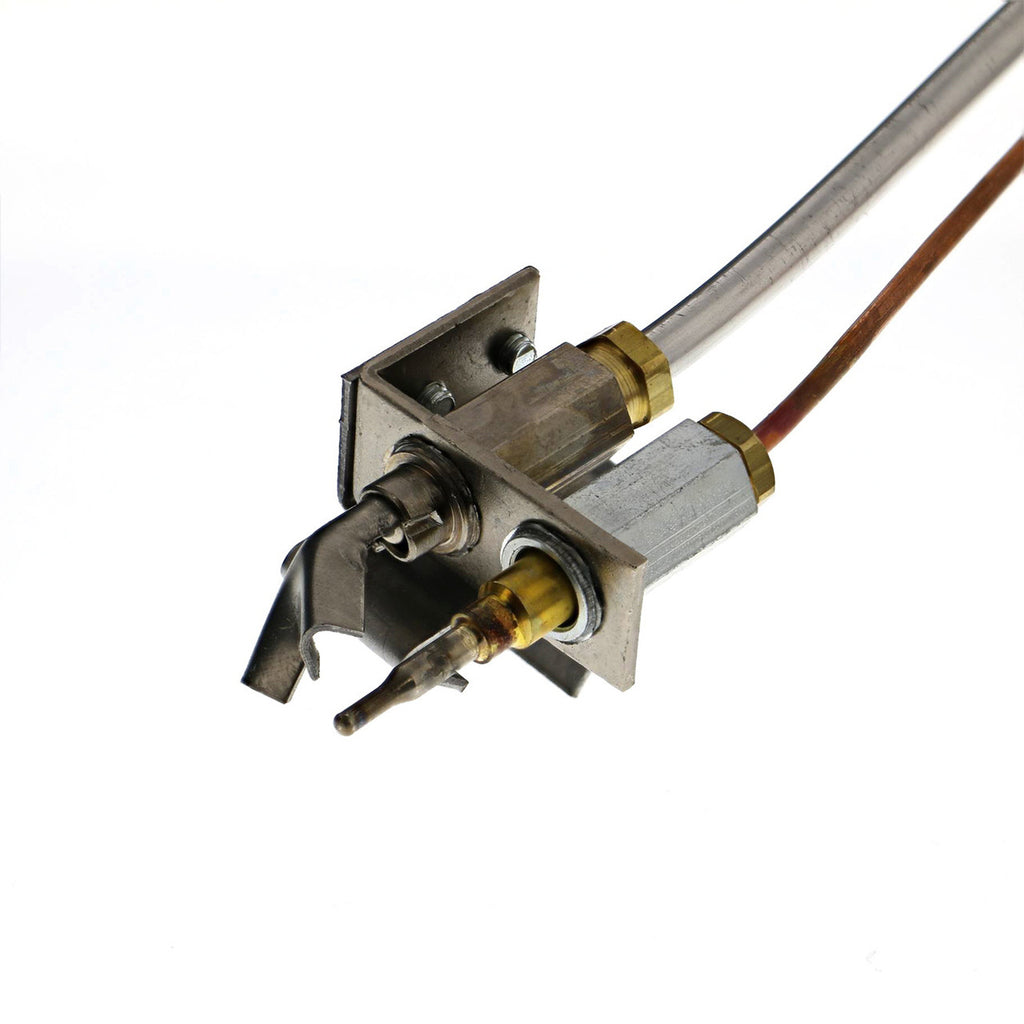

PSE pilot assembly

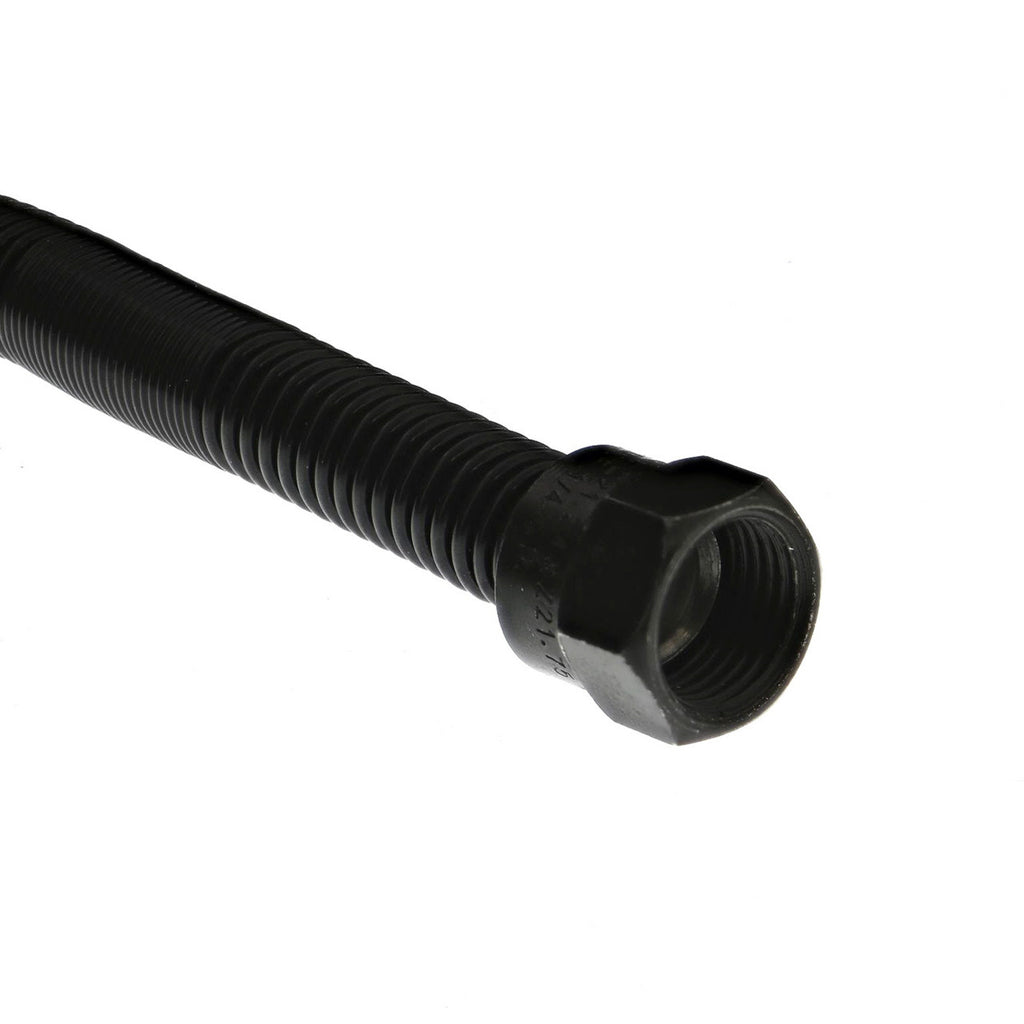

10-inch black stainless flex connector
3/8" NPT to 3/8" Flared connector (attached to valve)

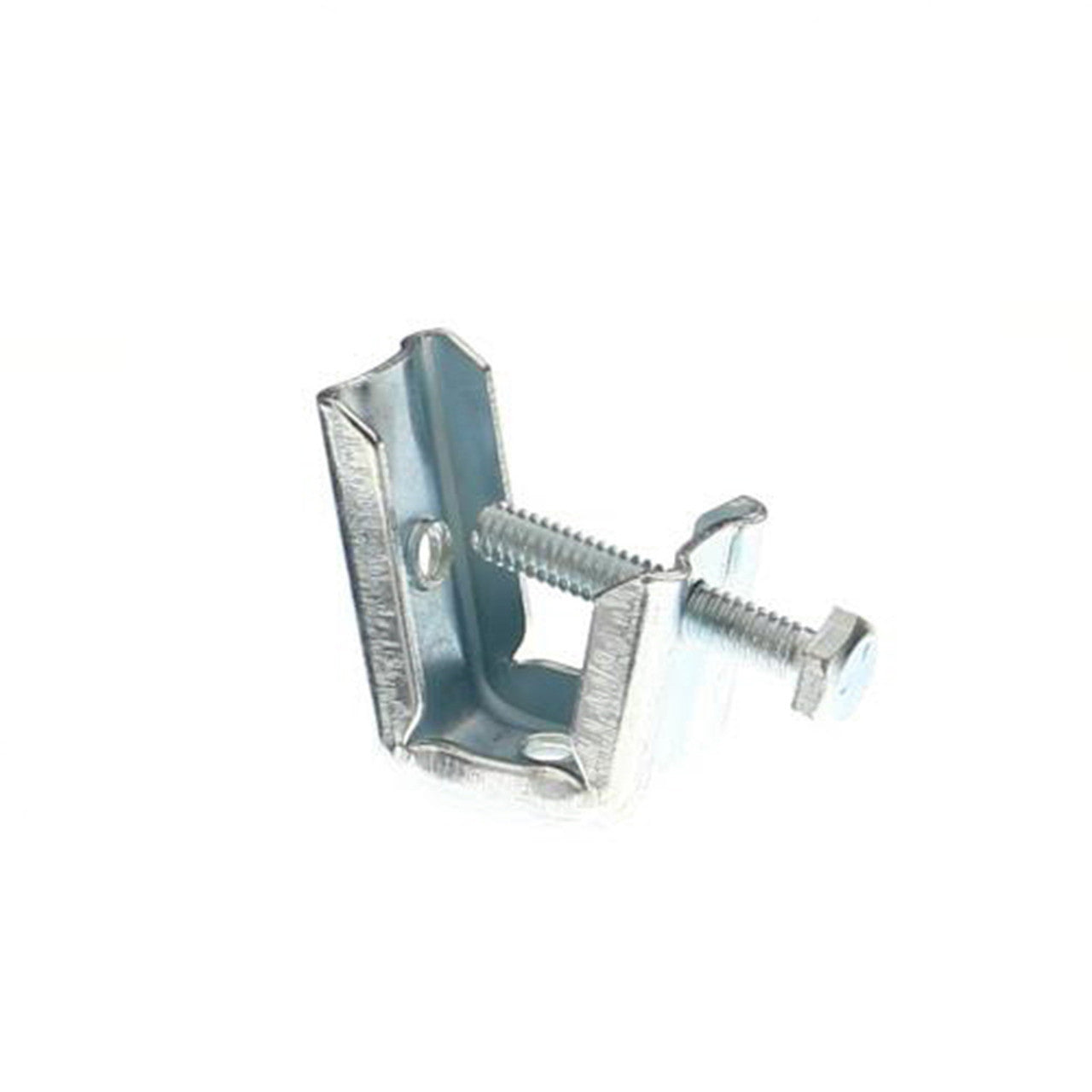

Flue damper Clamp

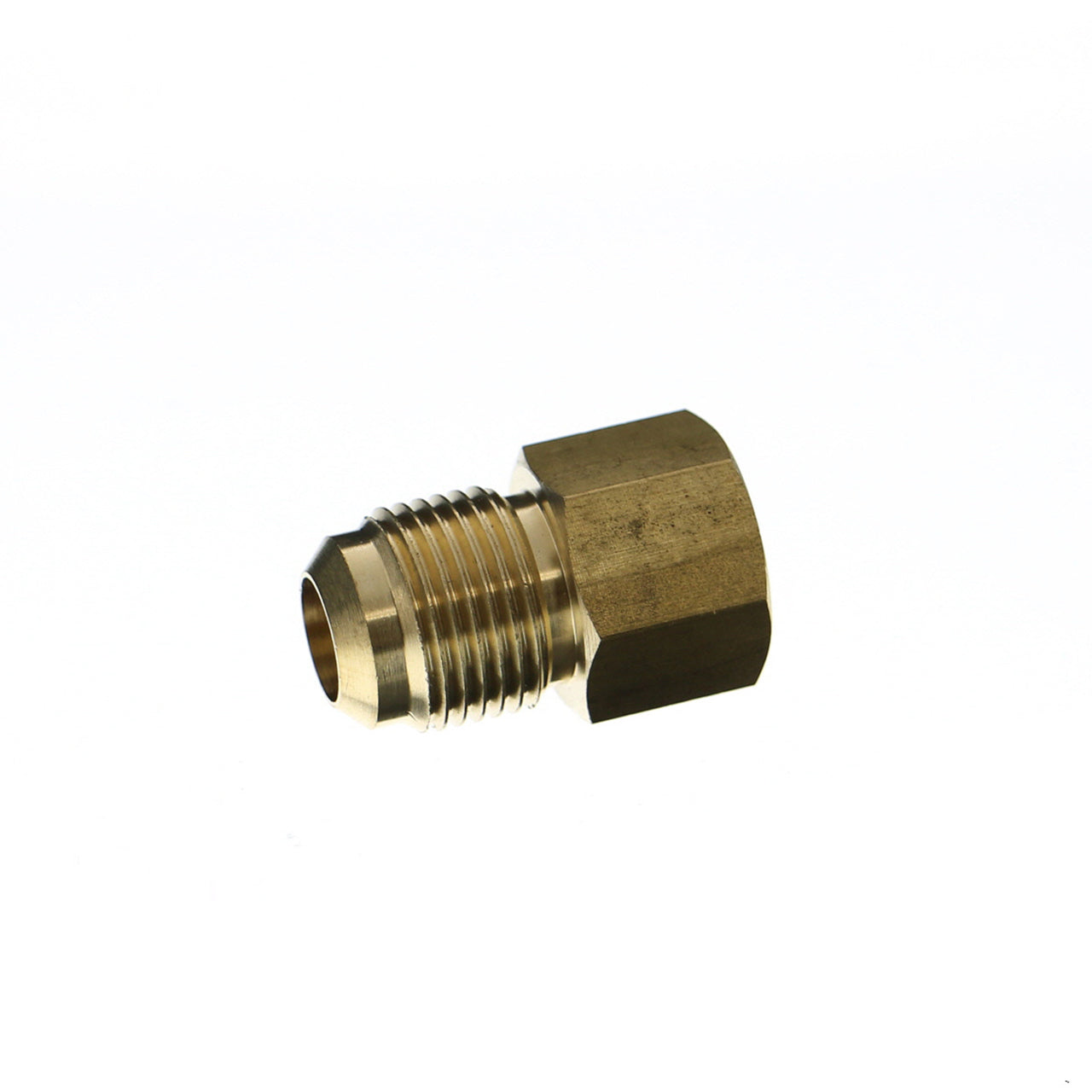

3/8” to 1/2” Adapter (increases 3/8” flare fitting to 1/2” flared fitting)
Complete Instruction Guide
1 Year Manufacturer's Warranty
Toll Free Technical Service Support Help Line (855) 498-8324

Limited Warranty

American Flame warrants the AF-LMF Valve Kit for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. Damage to the AF-LMF Valve Kit caused by accident, misuse, abuse, or installation error, whether preformed by a contractor, Service Company, or owner, is not covered by this warranty. American Flame will not be responsible for labor charges and/or damage incurred in installation, repair, replacement, or for incidental or consequential damage. Some states, provinces, and nations do not allow exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply. This warranty gives you specific legal rights. You may also have other rights that vary by state, province, or nation.
