AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control
  • AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control
  • Skytech AF-LMF/R Safety Valve Kit Remote Control for Vented Gas Log Fireplaces
  • AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control
AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control

American Flame AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control

This control system was developed to provide safe, reliable, user-friendly operation for gas heating appliances. This unit features a standing pilot that requires manual lighting, following which it can be remotely operated using the included remote control.

  • REMOTE OPERATION: This valve kit requires the pilot to be lit manually. Once lit it can be left standing. Use the included remote control to turn the fire ON or OFF.
  • SAFETY FUNCTION: This unit will close the gas flow if the oxygen level in the room is determined to be too low. Never operate this unit with the glass fireplace enclosure (doors) in the closed position. Install the Damper Clamp (included) to allow air flow.

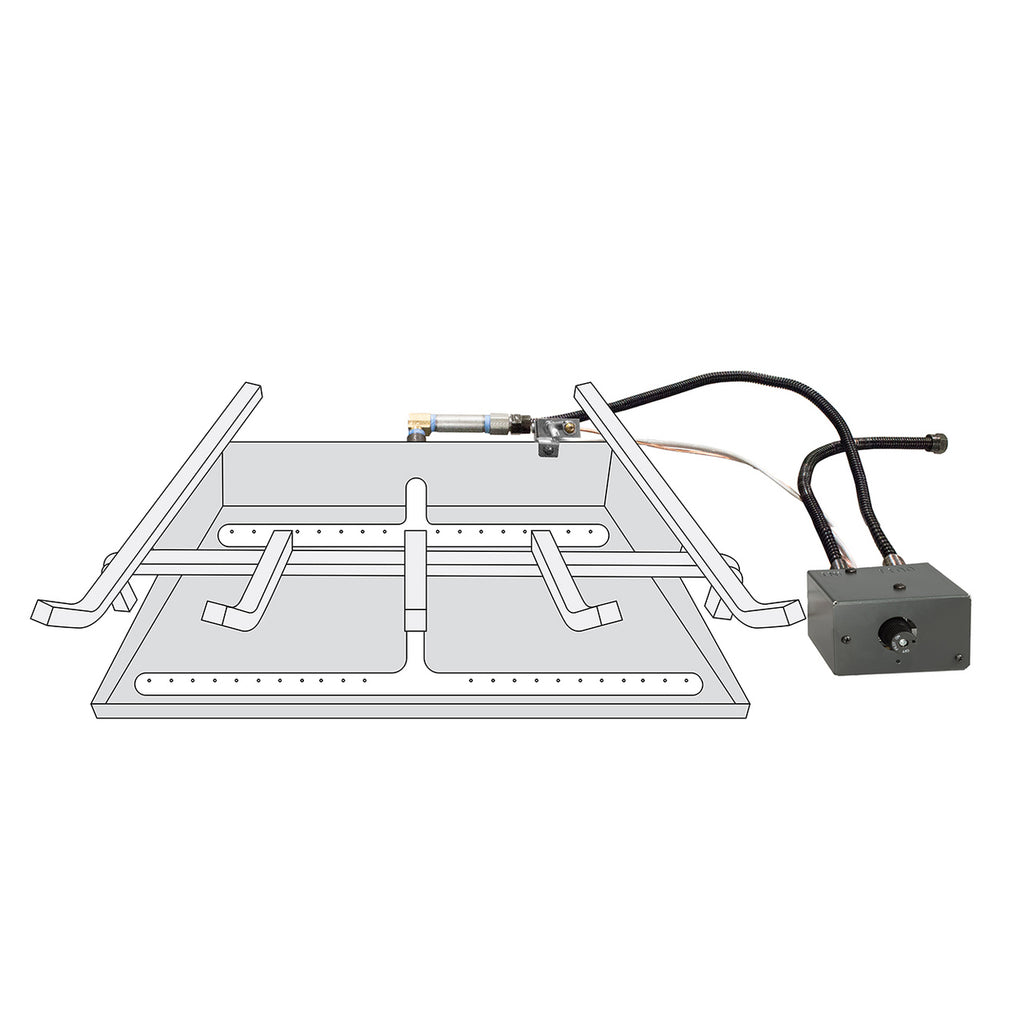

  • PLACEMENT: Valve box must be located a minimum of 2-inches from the side of the basket grate and never placed directly in front or behind the basket grate.
  • COMPATIBILITY: This valve kit is designed to be used with 18 to 30-inch natural gas log sets (purchased separately). Optional LP conversion kits with pilot orifices are available separately.
$380.00 $616.00
SKU: 510-30100
Included Parts
  • Manual valve assembly
  • PSE pilot assembly
  • 10-inch black stainless flex connector
  • Remote Control CON
  • 3/8" NPT to 3/8" Flared connector (attached to valve)
  • Flue damper clamp
  • 3/8" to 1/2" Adapter (increases 3/8" flare fitting to 1/2" flare fitting)
  • Complete instruction guide
  • 1 Year Manufacturer's Warranty
  • Toll Free Technical Service Support Help Line (855) 498-8324
Warranty

Limited Warranty

American Flame warrants the AF-LMF Valve Kit for 12 months from the date of purchase or installation to the original purchaser to be free from defects in materials and workmanship. Damage to the AF-LMF Valve Kit caused by accident, misuse, abuse, or installation error, whether preformed by a contractor, Service Company, or owner, is not covered by this warranty. American Flame will not be responsible for labor charges and/or damage incurred in installation, repair, replacement, or for incidental or consequential damage. Some states, provinces, and nations do not allow exclusion or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply. This warranty gives you specific legal rights. You may also have other rights that vary by state, province, or nation.
Shipping

Orders received before 2pm CST will ship the same business day. USA orders over $14.95 qualify for FREE standard shipping, including Alaska & Hawaii.

International orders will have shipping costs calculated at checkout.
Returns & Exchanges

We want you to feel confident in your purchase. If you're not satisfied, you may return or exchange your order within 30 days of receipt. Visit the Returns & Exchanges tab at the bottom of this page to start a return.
The OnFireGuy Difference
  • Fast Shipping: At OnFireGuy, we take pride in our commitment to providing fast and reliable shipping services to all our customers. Orders placed before 2pm Central Time will ship the same business day. USA orders over $14.95 qualify for FREE standard shipping, including Alaska & Hawaii.
  • Personal Touch: We include a hand-written thank you note with each order and an OnFireGuy.com sticker. We’ll email your tracking information, let you know when your order has been delivered, and check-in to make sure all items meet your expectations.
  • Buy with Confidence: If you need anything, we’re an email or phone call away. We do our best to provide “old fashion” customer service and we have a real person answer our phones (during business hours).

You may also like:

American Flame AF-LMF/R Standing Pilot Valve Kit with ON/OFF Remote Control

  • Designed specifically for use with 18 to 30-inch vented gas log sets
  • 30-Millivolt manual safety pilot kit measuring 3-3/4 inch Wide x 4 inch Deep x 2-3/4 inch High
  • 225°F rated valve system
  • Exclusive safety seal within the gas valve
  • Quick mount pilot assembly
  • Recommended for indoor vented gas log sets under 70,000 BTUs

This control system was developed to provide safe, reliable, user-friendly operation for gas heating appliances. Designed for ease of use, this advanced control system enhances safety while providing convenient remote control over your fireplace. Ideal for maintaining secure and efficient operation in any gas-heated environment.

VIEW INSTALLATION INSTRUCTIONS
